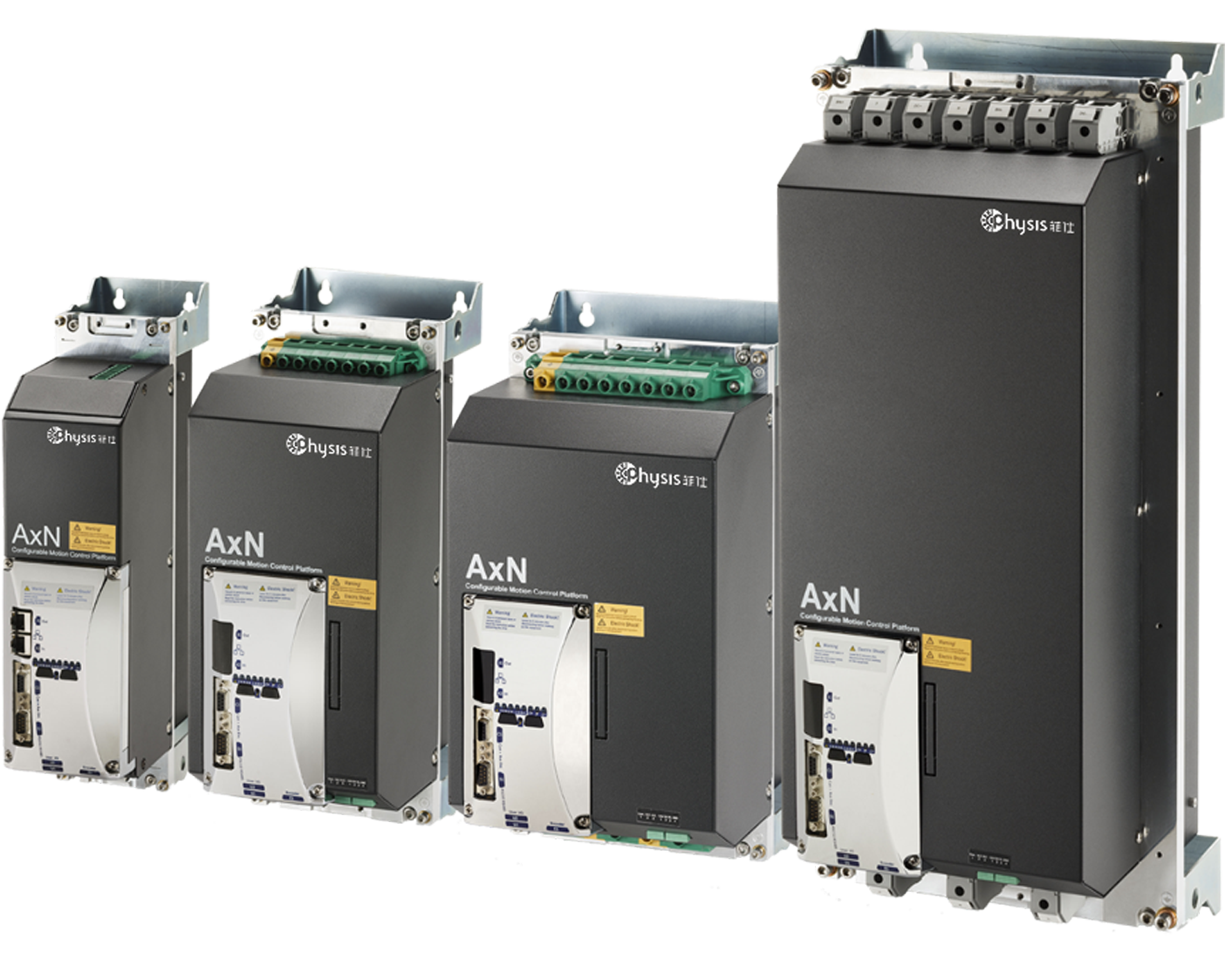

AxN Series
New Digital Servo Drive

l Rated power：2.2kW~110kW

l Three-phase input voltage：0~500Vac

l Encoder Support：Endat、Hiperface、Sincos、Hall、Resolver、Nikon、Tamagawa

l Cooling Methods: Fan cooling, water cooling, and oil cooling

l Bus Interface: Modbus、CANopen、EtherCAT

l Installation Method: cabinet installation, wall-through installation, baseplate installation

Features
Built-in PLC (IEC6113103 standard language)
Programmable: Five kinds of PLC programming languages can be used for secondary development, compliant to IEC61131-3 standard.
Integration: PLC is integrated in control card, eliminating the need for an external PLC controller, saving space and cost.
Faster Speed: Drive is directly controlled by the internal PLC and executes
High speed current loop control
Current loop cycle: 1μs (refresh frequency 1000kHz), real-time, high response controlHigh precision driver torque compensation technology is adopted to reduce torque fluctuation of large torque and low speed motor. Torque fluctuation is ±1% at 2rpm.
High speed current loop control
Current loop cycle: 1μs (refresh frequency 1000kHz), real-time, high response controlHigh precision driver torque compensation technology is adopted to reduce torque fluctuation of large torque and low speed motor. Torque fluctuation is ±1% at 2rpm.
Position and speed double loop parallel control
With position and speed curve, improve speed response characteristicsSupport a variety of high precision encoders and double encoders full closed-loop control, to achieve high response, high precision position and speed control of the servo system.
Specifications
